Panoptix™ PS60 Thru-hull Down Transducer

Panoptix™ PS60 Thru-hull Down Transducer

产品料号 010-01406-00
分享到:

使用 Panoptix 穿舱式下扫实时动态声纳,您可以实时查看船舶下方游动的鱼群和浮动的鱼饵;即使船只处于静止状态,也可以获得 3 个出色的声纳视图:LiveVü 下扫、RealVü 三维下扫和 RealVü 三维历史。

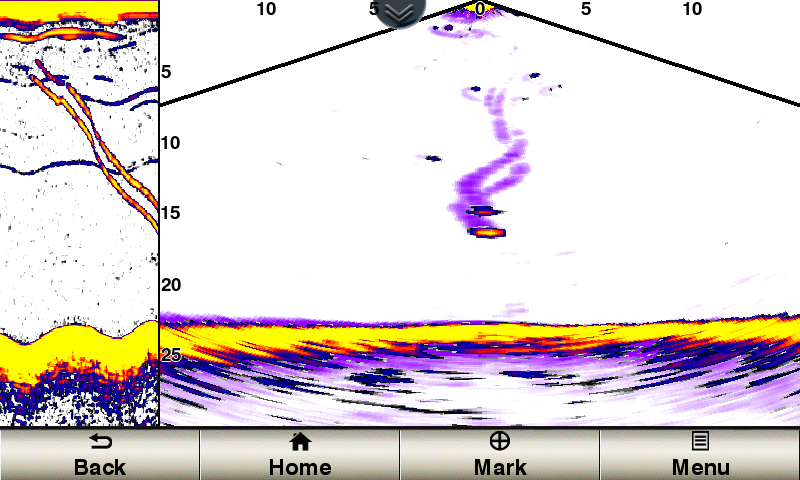

LIVEVÜ 下扫声纳

提供实时移动声纳图像。您可以看到鱼群游向或离开船舶。您可以看到在周围游荡的饵鱼和大型目标鱼群,甚至可以看到鱼饵。

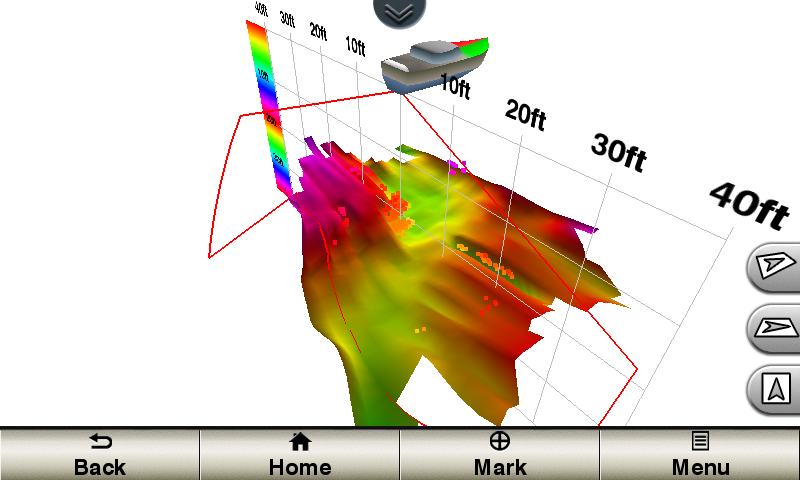

REALVÜ 三维下扫

船舶可静止不动,仍可以看到船舶周围的三维物体。其显示仅一次扫描的历史记录。

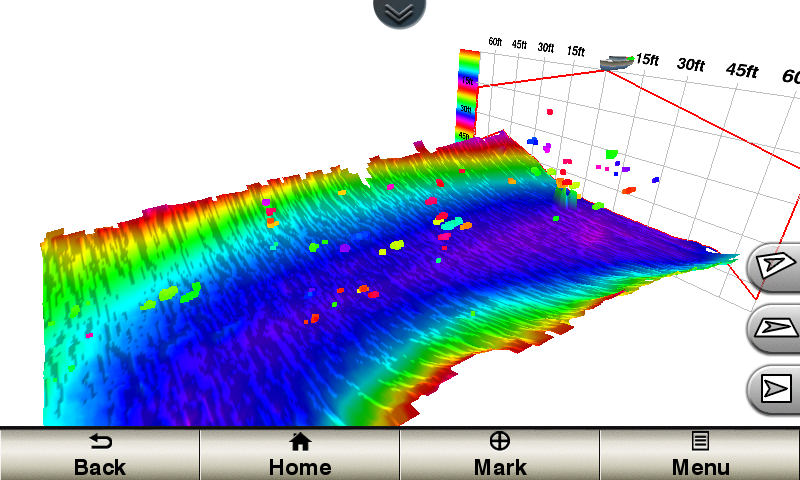

REALVÜ 三维历史

用于在船舶移动时寻鱼。显示您经过的整个三维水域(从水面到底部)以及其间的所有鱼群。



眼见为实

Garmin 率先将Panoptix实时动态声纳引入垂钓领域。Panoptix实时动态声纳的画面不同于以往任何声纳产品,它为专业垂钓人士提供前所未有的水下视野,使用与其兼容的Garmin海图仪及鱼探产品可获取扫描区域的实时动态画面和以三维形式呈现的水体、鱼群、水底结构等水下环境的扫描图像。您可以实时观察船舶周围情况,能够看到水域中的鱼群,甚至可以看到鱼饵投入水中和鱼群追逐鱼饵的过程。要真正欣赏到 Panoptix 的魅力,您一定要亲自体验一下。(附带 Panoptix 穿舱式换能器、穿舱式安装硬件和导流罩)

The Panoptix PS60 transducer does not provide water temperature or digital depth information to the connected chartplotter. If this information is desired, a separate transducer with those capabilities is required.

  • Weight:
    • Transducer only: 4.8 lbs ( 2.2kg)
    • Transducer and cable: 6.2 lbs (3.0 kg)
    • Fairing block: 7.2 lbs (3.3 kg)
  • Temperature Range:
    • Operating: 32°F to 104°F (0°C to 40°C)
    • Non-operating: -40°F to 158°F (-40°C to 70°C)
  • Mounting option: Thru-Hull
  • Power consumption: <0.8 A @ 12 Vdc
  • Voltage range: 10-35 Vdc
  • Frequencies supported: 417 kHz
  • Maximum range: 300 ft
  • LiveVü Down
    • User selectable beam direction: Electronically steerable over 90° region (+/- 45° fore/aft)
    • User selectable beam shape: 120°/10°, 120°/20°, 120°/40°​
  • ​​RealVü Historical
    • ​Fixed beam shape of 120° x 6°
    • Fixed down beam direction
  • RealVü Down
    • ​Automatically sweeps beam over 90° x 120° region (+/- 45° fore/aft)
    • User selectable sweep speed automatically determines beam shape
      • ​Slowest sweep for narrowest beam / maximum resolution
      • Fastest sweep for widest beam / minimum resolution​​
  • PS60 thru-hull down transducer (integrated 30 foot network cable, 15 foot power cable)
  • Fairing block
  • Stainless steel thru-hull mounting hardware
  • Split ring RJ45 connector
  • Documentation
