ECHOMAP Ultra 102sv

ECHOMAP Ultra 102sv

产品料号 010-02526-01

电商专区

ECHOMAP Ultra 102sv ECHOMAP Ultra 102sv ECHOMAP Ultra 102sv ECHOMAP Ultra 102sv ECHOMAP Ultra 102sv

ALL THE TOOLS YOU NEED FOR SUCCESSFUL FISHING

The sunlight-readable 10” touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.

The keyed-assist 10” touchscreen puts fishfinding know-how at your fingertips.

See crisp images of structure and fish in stunning detail.

Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps.

Manage your marine experience from nearly anywhere with the ActiveCaptain® app1.

Connect your boat to share data, sonar and charts with your other compatible devices.

Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

Better fishing comes built-in.

LIVESCOPE™ SONAR SUPPORT

ECHOMAP Ultra 102sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).

BUILT-IN UHD SONAR

The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

VIVID COLOR PALETTES

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

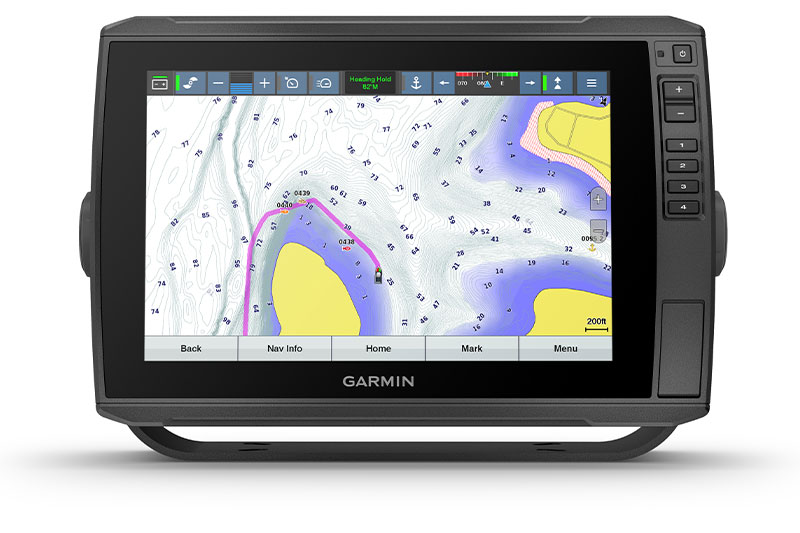

ADD CHARTS

Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.

QUICKDRAW CONTOURS

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw Community on the Garmin Connect app3.



Stay connected on and off the water.

NETWORK CAPABLE

If you have multiple compatible ECHOMAP Ultra 10” and 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.

NMEA 2000® NETWORK COMPATIBILITY

Connect to your compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast sensor — and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.

FORCE™ TROLLING MOTOR COMPATIBILITY

Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.

TAKE IT WITH YOU

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.

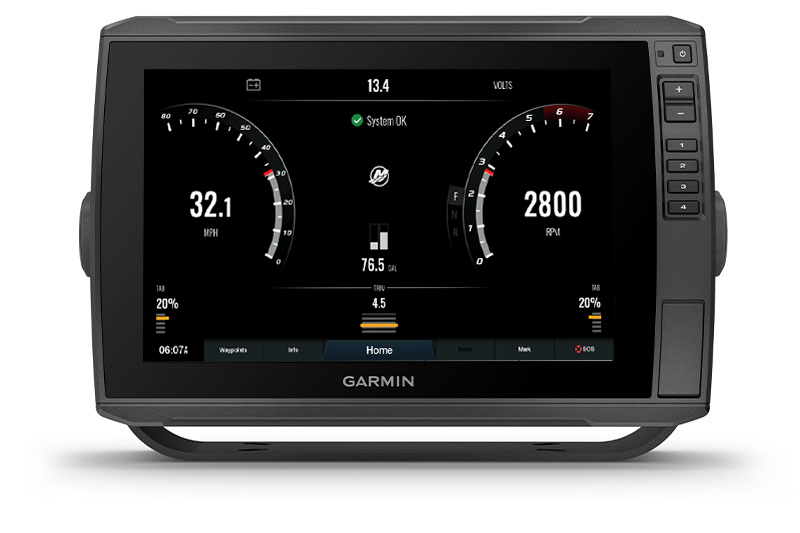

ENGINE CONNECTIVITY

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

1 Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP Ultra 102sv
2 Auto Guidance is for planning purposes only and does not replace safe navigation operations
3 Requires app on your compatible smartphone
4 In compliance with ISO standard 13342
Wi-Fi is a registered trademark of the Wi-Fi Alliance.

产品规格

外观尺寸 29.5 x 19.5 x 9.8 厘米
屏幕尺寸 21.7 x 13.6 厘米; 25.4 厘米
显示屏分辨率 1280 x 800 像素
显示屏类型 WXGA IPS 屏幕
防水等级 IPX7
重量 1.8 kg
安装选项 栏式或齐平安装
支持偏振光
功耗 26 W
天线形式 Internal or external over NMEA 2000
发射功率 600 W(RMS)/ 4,000 W(峰到峰)
接收器 10 Hz
Garmin Marine Network 端口 双接头(大)

地图与内存

卡槽数量 2 microSD™ 卡
航点储存数量 5,000
航迹储存数量 50(当前航迹最多50,000航点)
航线 100

户外休闲功能

潮汐表

导航仪功能

兼容 Garmin 声纳
支持 AIS(跟踪目标船位置)
兼容 GSD 黑盒子声纳模块
兼容 FUSION-Link 兼容无线电
兼容 GCV 黑盒子声纳模块
兼容 ActiveCaptain

声纳规格

搭载双频率( 50/200 kHz ) 声纳
搭载双波束( 77/200 kHz ) 声纳
支持的频率
  • CHIRP 高频段宽波束(150-240 kHz)
  • 超高清 ClearVü:800 kHz (760-880 kHz)
  • CHIRP ClearVü: 455 kHz (425-845 kHz)
  • 超高清 SideVü:1,200 kHz (1060-1170 kHz)
ClearVü 有(内置 CHIRP)
最大深度 2,300 英尺 @ 77 kHz 淡水,1,100 英尺 @ 77 kHz 海水(最大深度视水底类型及其他水况而定)
底部锁定(从底部往上显示返回数据)
水温日志和图表
声纳记录
声纳历史回放

通讯与接口

天线 内置或外置,兼容 NMEA 2000
换能器针脚数量 1 – LVS 声纳,1 – 12 针扫描声纳
NMEA 0183 输入端口 1
NMEA 0183 输出端口 1
无线连接
  • 包含全球底图的ECHOMAP Ultra 102sv
  • GT56UHD-TM换能器
  • 电源线/数据线
  • 使用速拆吊架倾斜安装
  • 嵌入式安装
  • 保护罩
  • 硬件
  • 文件
